- Digital multi-protocol control unit (mfx, mfx , DCC, Motorola) High-definition modern colour touch screen. Integrated central track control panel
- Housing with central stop button and 2 knobs in robust industrial quality. Up to 32 switchable locomotive functions. 2 built-in locomotive card readers.
- Built-in speaker. Built-in SD card slot. Built-in powerful booster.
- 5.0 A max. Output power when using 60101/L51095 switching network (recommended for track 1 or LGB). Up to 320 Motorola and 2048 DCC magnetic items switchable. Switching power supply is not included.
- Road control (including shuttle train control). . 2 USB hosts for e.g. Mouse, keyboard, USB stick etc. and 1 USB charging socket. Direct connection for 2 mobile stations and a bus expansion device. Connections for e.g. network, external speakers, Märklin bus. Extensions can be connected via Märklin bus.
Product Description

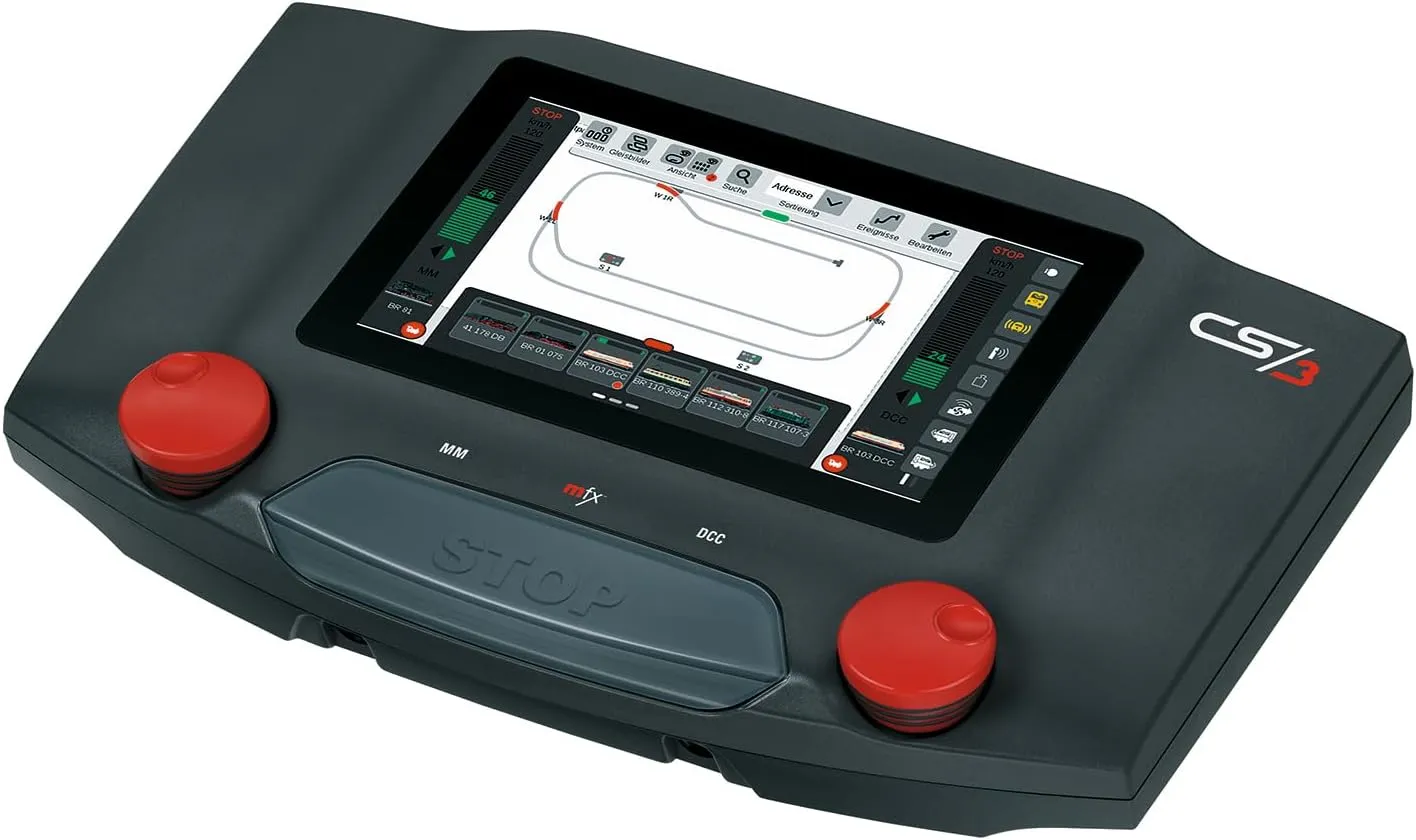

The Central Station 3 is a multi-protocol control unit with its high-resolution, modern colour touch screen, 2 speed controllers and integrated central track control panel the possibility to easily and comfortably control the locomotives and the entire system. For locomotives, up to 32 functions can be switched and accessories up to 320 Motorola or 2048 DCC magnetic items are possible. The CS 3 has 2 locomotive card readers, an SD card slot for memory expansion and an integrated speaker. A powerful booster is integrated to supply the system with driving and switching current. The CS 3 is multi-device compatible, i.e. with the optional cable (60123), additional CS 3 plus (60216) with respective network connection can be operated together on one system. Additional driving desks, further layouts and keyboards extend the operation of the system. The CS 3 has 2 built-in USB hosts (for e.g. mouse, keyboard, USB stick), a USB charging socket, a network connection, connections for 2 mobile stations, a connection for external speakers and others for the Märklin bus system. S88 connections can be realized externally via link s88 (60883). Load capacity on the connection track: max. 5 A, load capacity on the programming track: max. 1.2A The Central Station 3 is only to be used in conjunction with the switching power supply 60061 (60101 for track 1 and L51095 for LGB) (not with transformers such as B. 60052). When using the 60061 switching power supply, there is a maximum output of 58 VA and a maximum current of 3 A (60216 with switching power supply 60101/L51095 results in a maximum current of 5 A, recommended exclusively for track 1/LGB. Please note the cable cross section larger than 0.5 mm². ). The Central Station 3 is only to be used in conjunction with the 60061 switching power supply (60101 for track 1 and L51095 for LGB) (not with transformers such as 60052). When using the 60061 switching power supply, there is a maximum output of 58 VA and a maximum current of 3 A (60216 with switching power supply 60101/L51095 results in a maximum current of 5 A, recommended exclusively for track 1/LGB. Please note the cable cross section larger than 0.5 mm²). Switching power supply not included. Dimensions: 320 x 195 x 80 mm.
Set Contains:
1
